HTT5 16 in. 11-Gauge Galvanized Heavy Tension Tie
SKU 10119
$29.87
Pre-order
Loyalty
Buy and earn $0.59 Loyalty for your next purchaseLoyalty is a discount program that lets you buy products and earn points to redeem on your next purchase. Your Loyalty balance is updated when you pay online or in-store. The Loyalty amount shown on this page can be recalculated at the checkout.
Out of stock, available for pre-order
1
Save this product for later

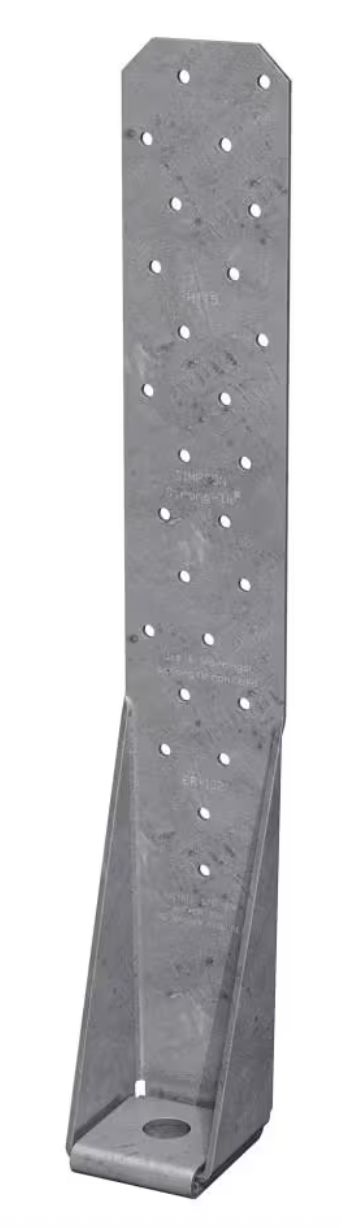

HTT5 16 in. 11-Gauge Galvanized Heavy Tension Tie
Product Details
The HTT is designed to resist medium tension loads that are fastened with #10 screws. This single-piece formed heavy tension tie has a four-ply formed seat, is designed without rivets and does not require washers. This tension tie provides high-strength, post-pour, concrete-to-steel connections.
- Ideal for retrofit or new construction projects
- Can be installed with cast-in-place or post-installed anchor bolts
- Four-ply formed steel provides increased tension capacity
- Anchor bolt washers not required
- 2-1/2-in width x 16-in length
- Made from 11-Gauge steel
- Galvanized (G90) for extra corrosion resistance
- Install with (1) 5/8 in. anchor bolt AND (26) 0.148 x 1-1/2 in. nails, 0.148 x 3 in. nails, 0.162 x 2-1/2 in. nails or #10 x 1-1/2 in. Strong-Drive SD screws
